Electroslag welding system with trolleytype nozzle (IGBT)

The Electroslag Welding System with Trolley-Type Nozzle (IGBT) delivers fast, stable, and efficient electroslag welding for vertical seams. This advanced electroslag welding equipment ensures deep fusion, high precision, and excellent weld strength for heavy steel fabrication.
High Efficiency: Rapid electroslag welding with uniform, clean seams.
Stable Power: IGBT inverter ensures consistent output and energy savings.
Easy Operation: Compact trolley design enables smooth, precise movement.
Safe & Reliable: Overheat, low-voltage, and arc-failure protection.
Wide Application: Ideal electroslag system for box beams and steel structures.

Overview
Recommended Products

Place of Origin:	China
Brand Name:	IKING
Model Number:	IK-ZH7-1000-1250
Minimum Order Quantity:	1

Description:

The welder transfers energy through an arc, generating high temperatures in the weld area, melting the weld material and the workpiece surface. This process forms a strong weld after cooling. The nozzle is the focal point of the welding arc and molten metal. It concentrates the current and heat, promoting metal melting and forming a uniform weld.

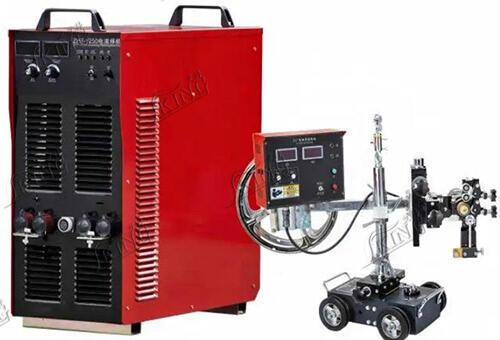

This system consists of one ZH7 series electroslag welding power source and one WT-ZH nozzle electroslag welding carriage. It utilizes the resistance heat generated by the current passing through the molten slag as the heat source to fuse the workpiece and filler metal into a weld seam in a vertical position.

Features：

1.It is particularly suitable for welding partition plates of box-shaped columns/beams, and the equipment is easy to operate.

2.Electroslag welding with a molten nozzle produces high-quality welds with low oxygen and impurity levels in the weld zone. This helps improve the weld's mechanical properties and corrosion resistance.

3.Electroslag welding with a molten nozzle uses a high-energy DC arc. The arc is formed within the nozzle, resulting in concentrated heat and high energy density. This helps quickly melt the workpiece surface and fill the metal layer, resulting in faster welding speeds.

Specifications:

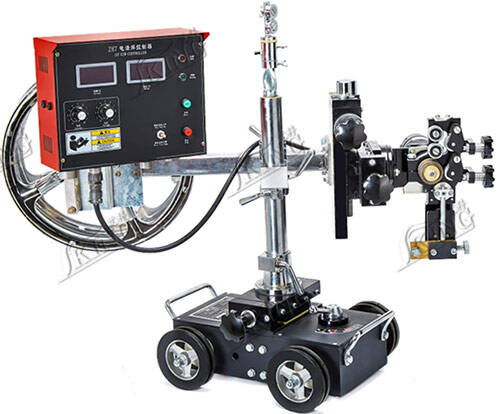

WT-ZH Nozzle Electroslag Welding Carriage

Name	Parameter
Wire Spool Capacity	25Kg
Torch Rotation Angle	±45°
Head Rotation Angle	±45°
Beam Rotation Angle	360°
Weight (excluding welding wire)	50Kg
Rated Welding Current	1250A
Column Lateral Adjustment Stroke	78mm
Head Vertical Adjustment Stroke	100mm
Head Lateral Adjustment Stroke	100mm
Beam Lifting Stroke	170mm
Wire Feeder Motor Rated Voltage	DC90V
Welding Wire Diameter	2.0, 2.4, 3.2mm
Wire Feeding Speed	0.4~7.2m/min
Overall Dimensions (L×W×H)	962×425×976mm

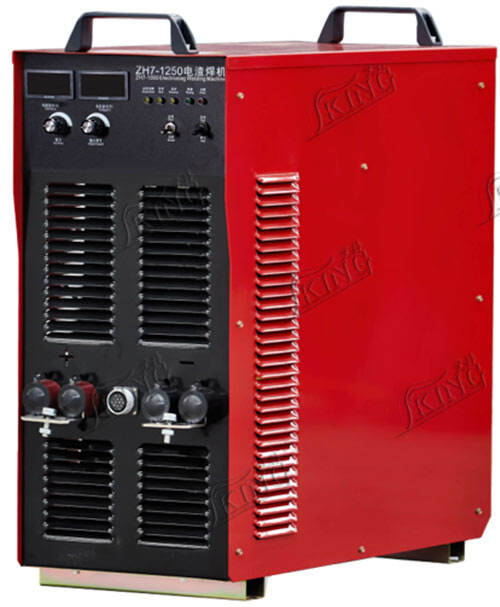

ZH7 Wire Electrode Electroslag Welding Power Source (IGBT)

Name	Unit	ZH7-1000	ZH7-1250
Weight	KG	95	105
Full Load Efficiency	%	89%	89%
No-load Voltage	V	120	120
Rated Welding Voltage	V	60	60
Rated Input Current	A	128	160
Full Load Power Factor	-	0.88	0.88
Rated Welding Current	A	1000	1200
Voltage Output Range	V	22-60	22-60
Current Output Range	A	90-1000	120-1200
Power Grid Rated Input Capacity	KVA	70	85
Rated Duty Cycle	%	100	100
Welding Cable Cross-sectional Area	mm²	140 or 70×2	140 or 70×2
Three-phase Input Wire Cross-sectional Area	mm²	16	25
User Air Switch Capacity	A/V	250/380	250/380
Power Supply Input Voltage/Frequency	V/Hz	AV3×380/50	AV3×380/50
Overall Dimensions (L×W×H)	mm	823×371×840	823×371×840

Competitive Advantage:

Power Source：

1.Compact size and lightweight.
2.Wide current adjustment range.
3.Automatically stops output if the arc is not established within 1 minute after startup.
4.High efficiency and power factor, resulting in significant energy savings and high power grid utilization.
5.Adopts IGBT inverter technology to ensure high stability of welding parameters despite power grid voltage and load fluctuations.
6.Equipped with protection functions: provides protection in case of overheating or low power grid voltage, along with a protection indicator light.

Trolley：

1.The horizontal adjustment adopts a screw-nut mechanism, with the slide guide structure integrated with the base, resulting in a low center of gravity that ensures the welding cart is stable, reliable, and allows for smooth and flexible adjustments.
2.The vertical feed also utilizes a screw-nut mechanism and slide guide, with a radial ball bearing and thrust bearing at the spindle journal, making the structure simple, compact, lightweight, and allowing for smooth rotation.
3.The wire feeding motor and cantilever are designed as an integrated unit, featuring a lightweight structure, well-balanced center of gravity, and a neat appearance, which enhances the stability of the welding cart during the welding process.

Applications:

The ZH7 inverter electroslag welding machine is a high-efficiency, energy-saving DC power source that adopts IGBT inverter technology. It can weld carbon structural steel, low-alloy structural steel, heat-resistant steel, and composite steel materials.
