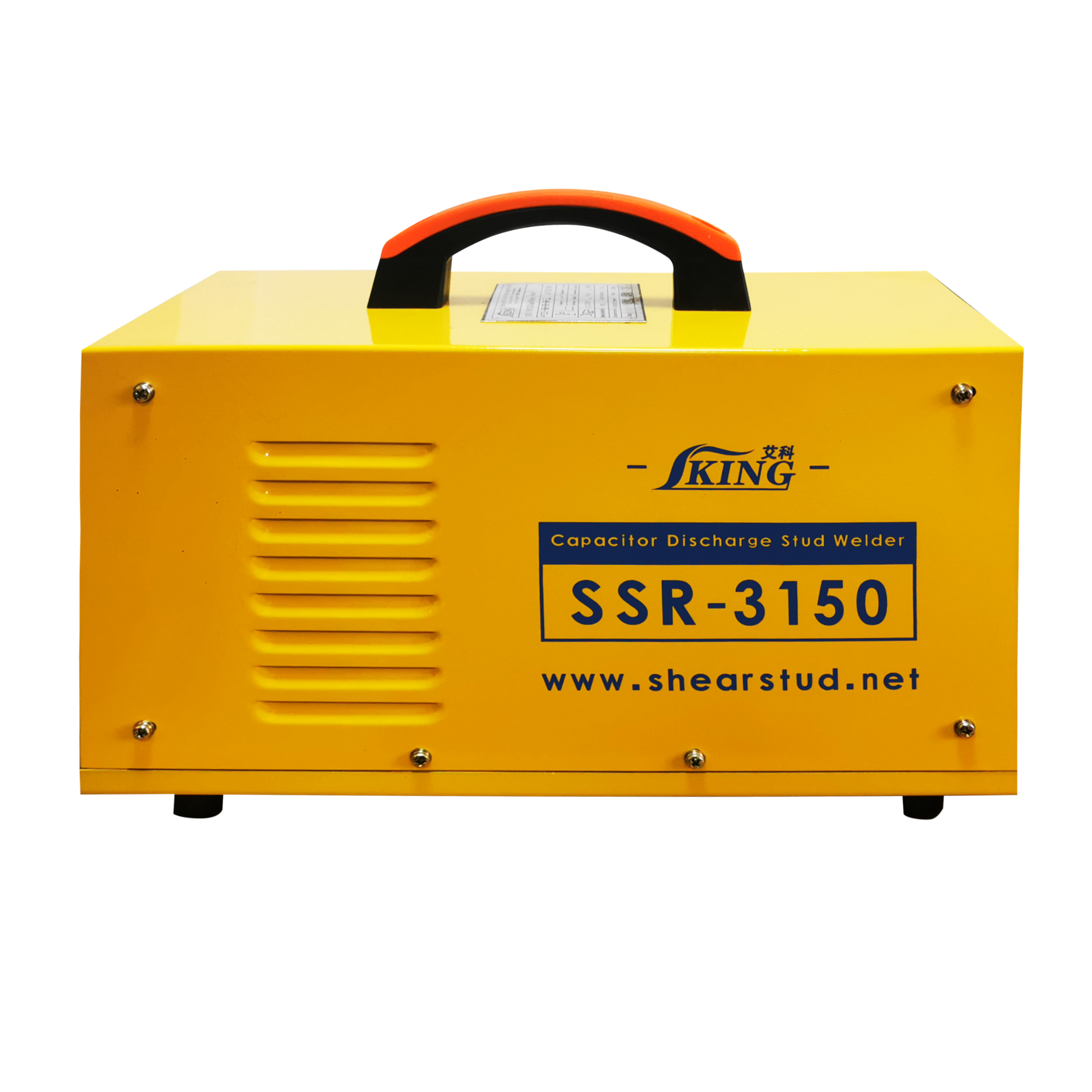

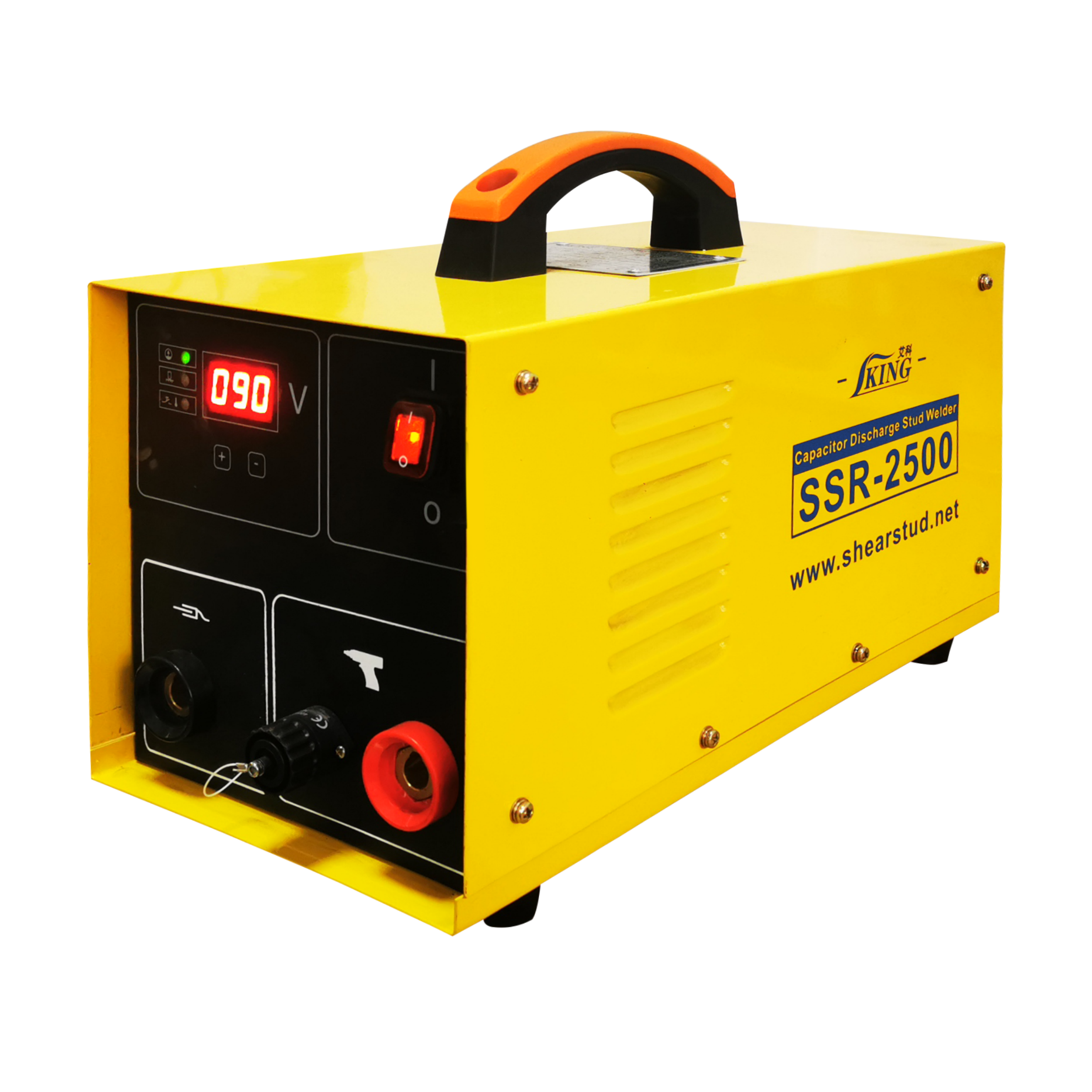

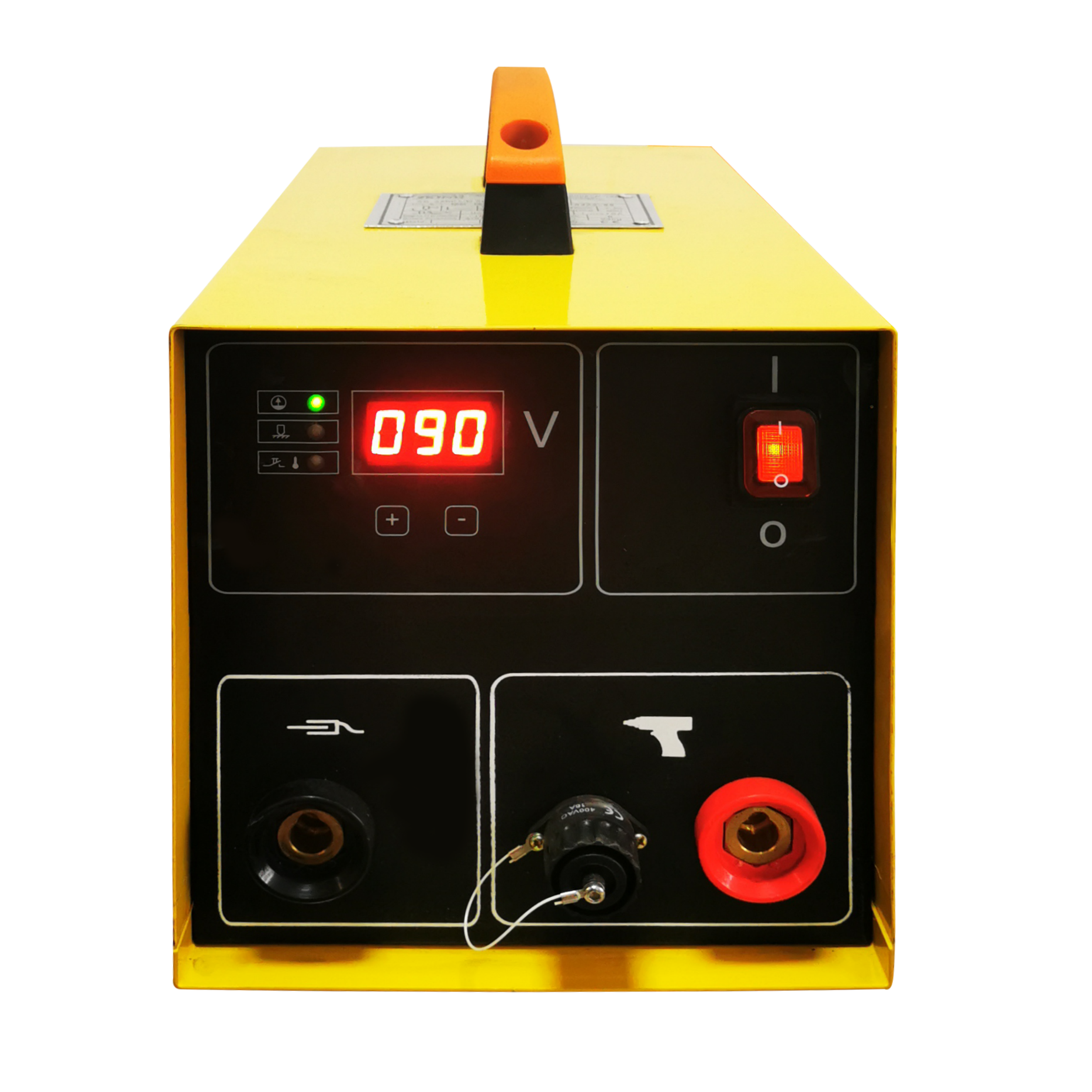

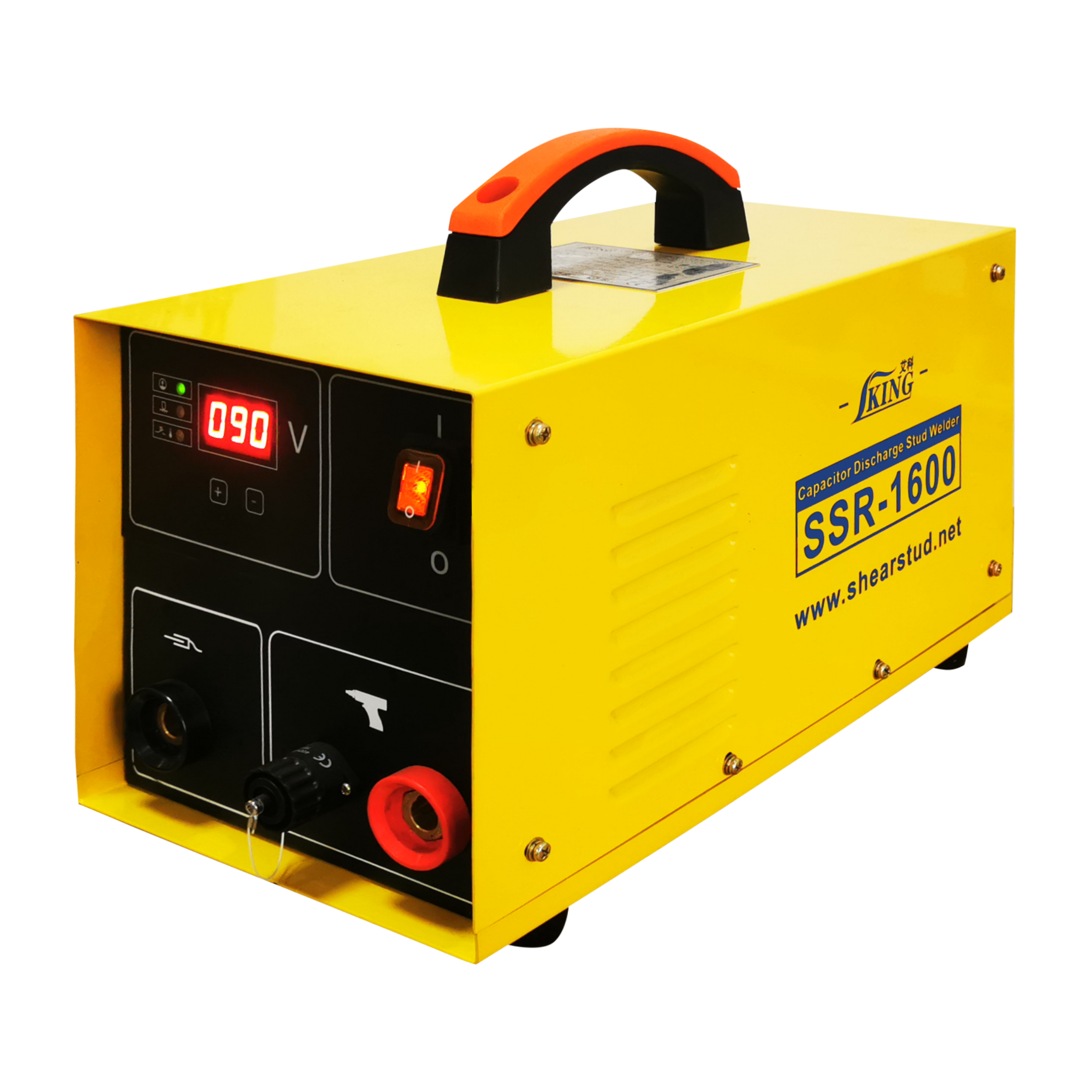

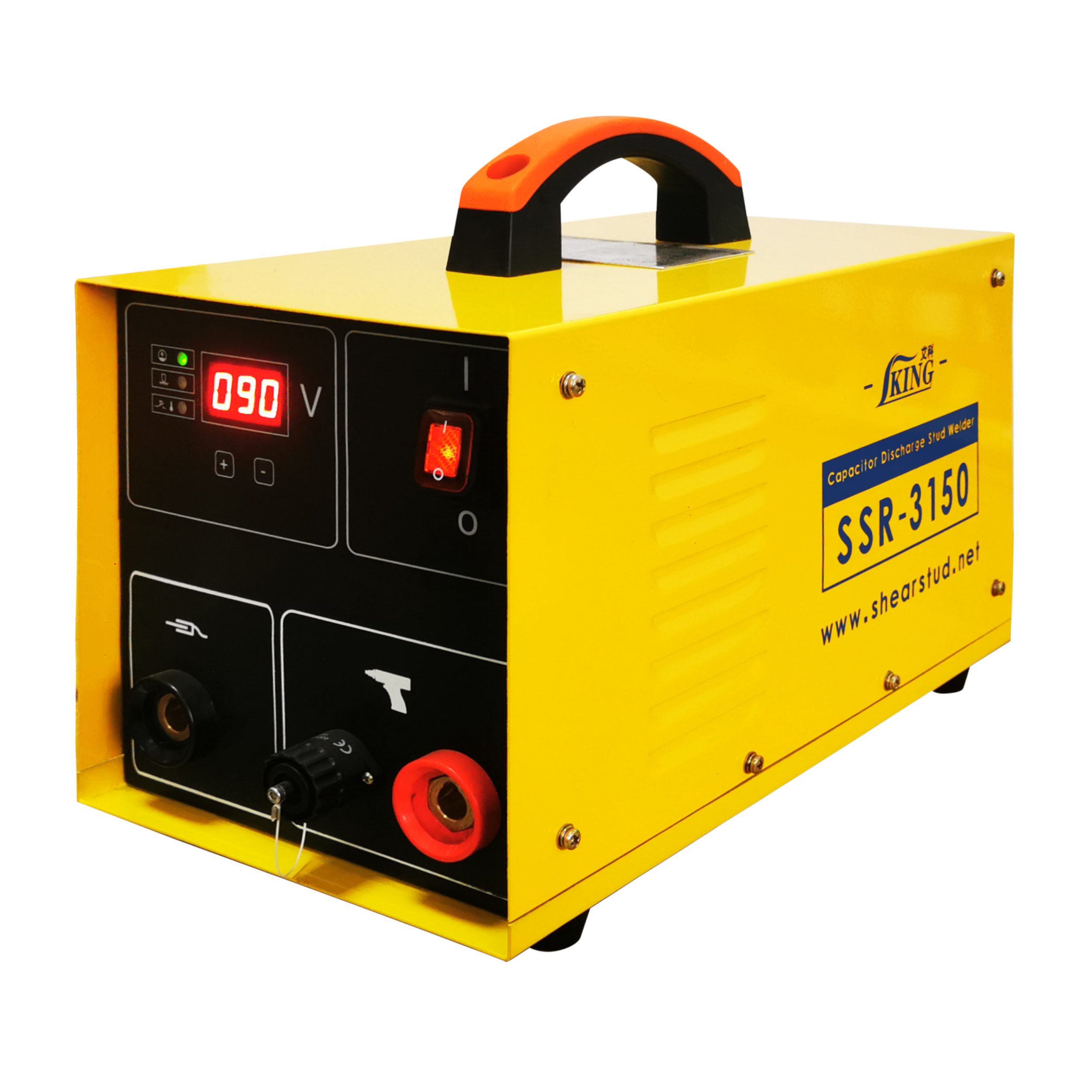

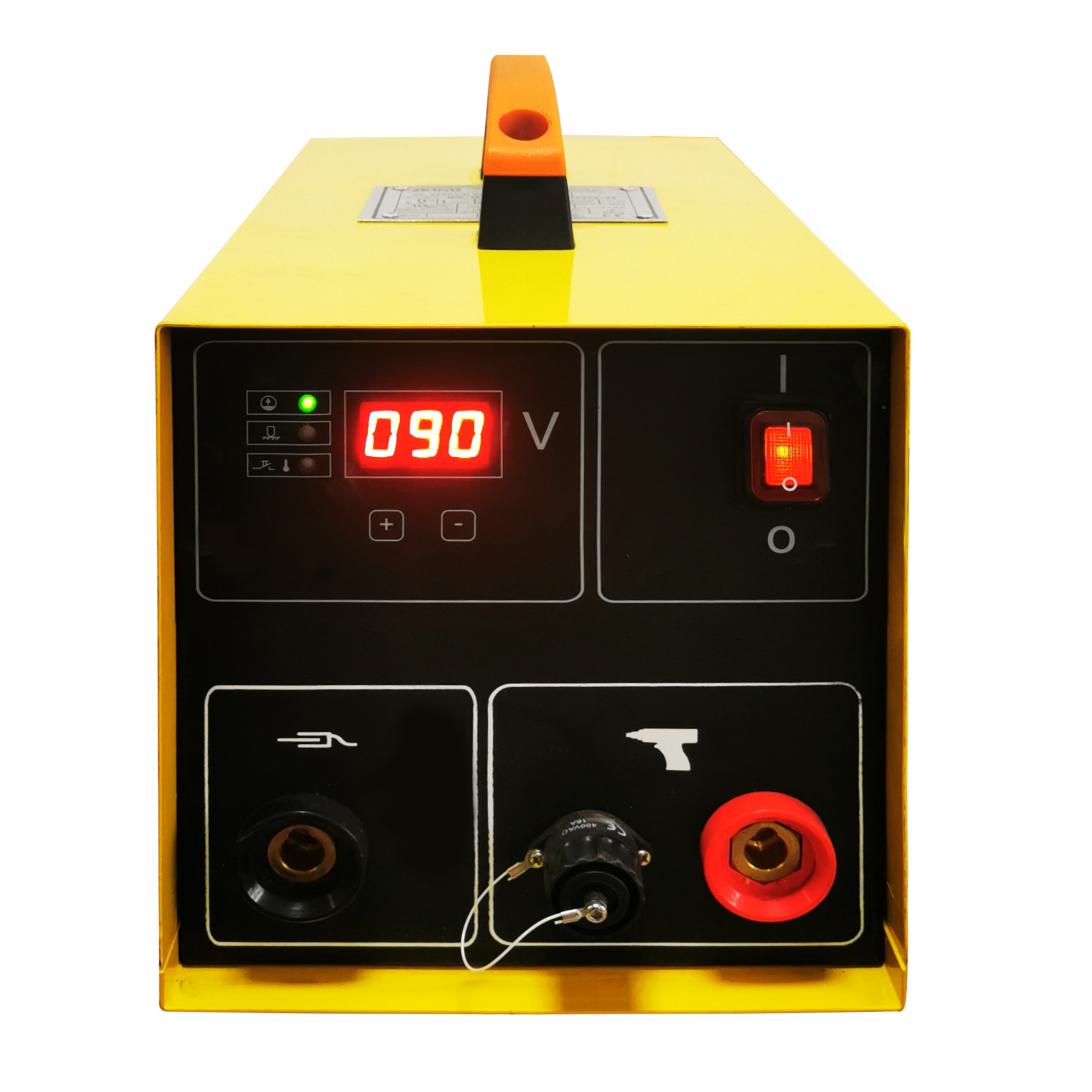

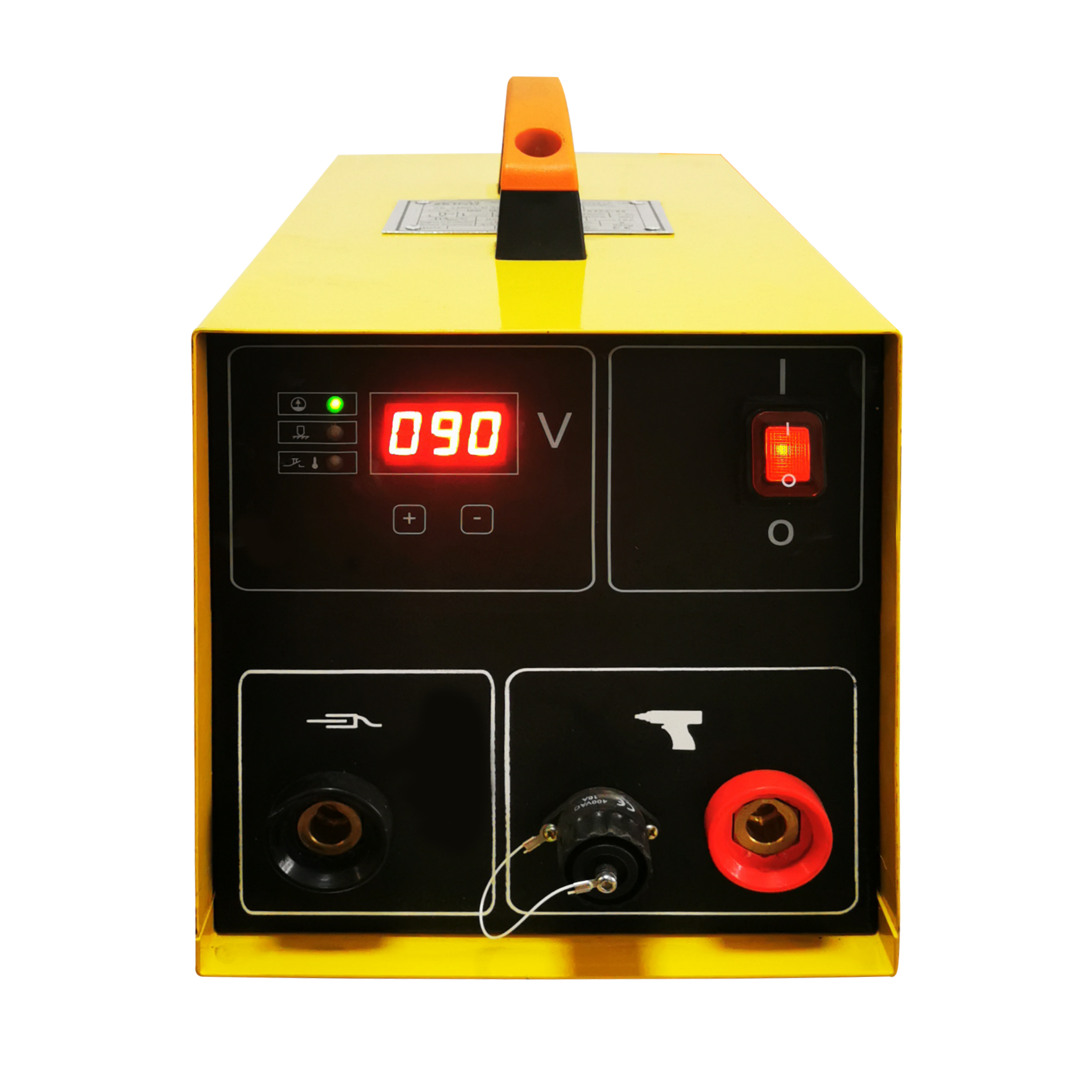

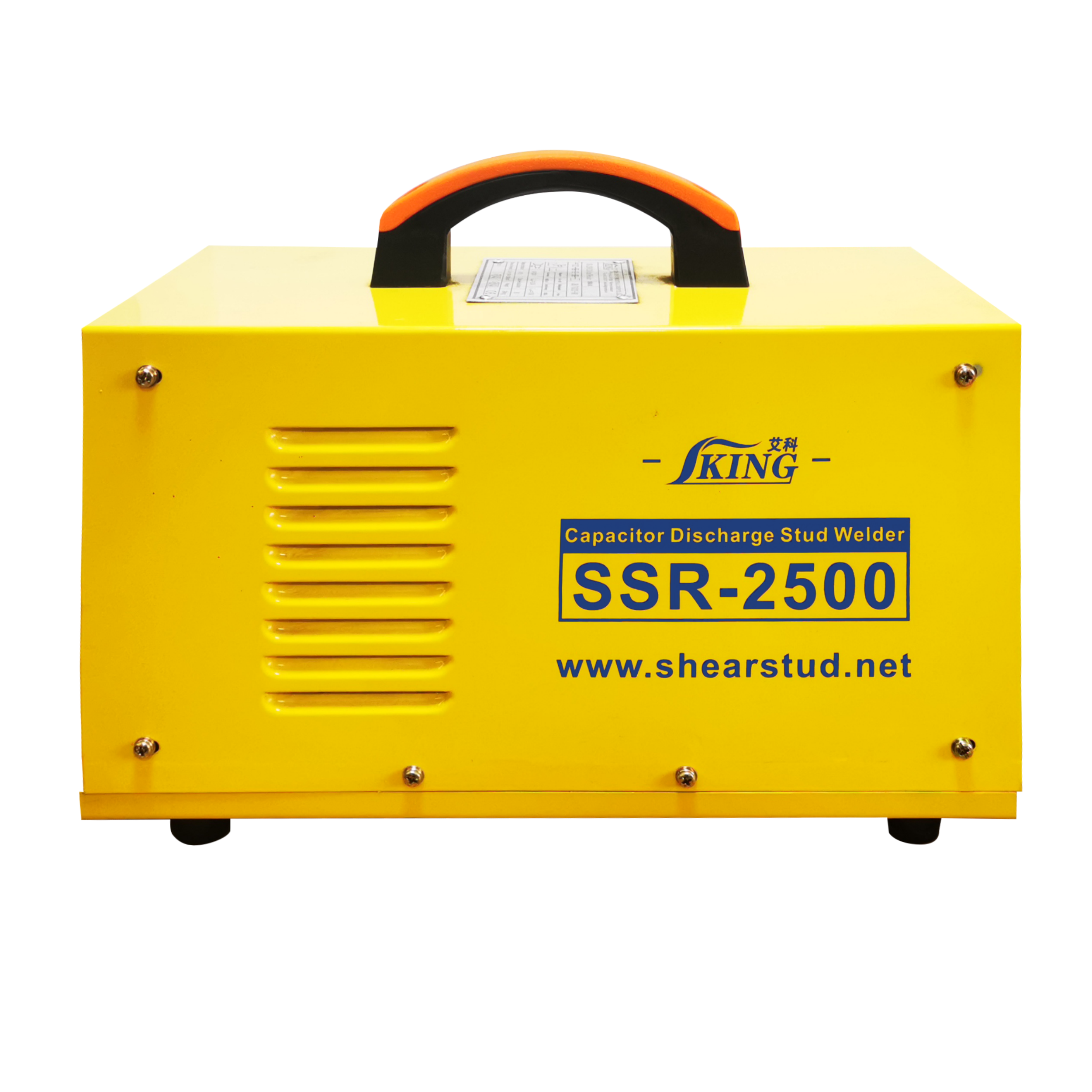

IKING SSR Series Capacitor Discharge Stud Welding Machine Description
The SSR series capacitor discharge stud welding machine discharges the tip of the welding nail through the energy storage voltage of the capacitor, and can weld studs with a diameter of 2-10mm and similar welding nails on a thin plate with a thickness of 0.3mm or more.
IKING SSR Series Capacitor Discharge Stud Welding Machine Technical Data Sheet
| Model | SSR-1600 | SSR-2500 | SSR-3150 |
| Stud Range | Φ3-6mm | Φ3-8mm | Φ4-10mm |
| Max. Output Energy | 1600J | 2500J | 3150J |
| Capacitance | 25200μF | 99000μF | 108000μF |
| Voltage Adjustment Range | 35-95V | 35-195V | 35-195V |
| Charging Time | 0-3s | ||
|
Weld Speed (Stud Qty/Stud Dia/Minute) |
30pcs/6mm/min | 30pcs/8mm/min | 30pcs/10mm/min |
| 35pcs/3mm/min | 35pcs/3mm/min | 35pcs/4mm/min | |
| Applied Patent | Utility model patent CAPACITOR DISCHARGE STUD WELDING MACHINE | ||
| Input Voltage | Single phase 110VAC~240VAC/50Hz or 60Hz (other voltages available) | ||
|
Allowable Input Voltage Fluctuation Range |
±10% | ||
| Standard Supply Scope |
1. Machine (1pc) 2. Stud gun with cable (1pc) 3. Earth clamp with earth lead (1pc) 4. Chuck (4sets) 5. Special power cable (1pc) 6. Enclosed documents (1set) |
||
|
Specification of 1-phase Power Cable (3 wires) |
3 wires (1.5mm2/pc) 3×1.5mm2 | ||
|
Specification of Control Cable (2 wires) |
2 wires (0.5mm2/pc) 2×1mm2 | ||
|
Max. Length of Extended Welding Cable |
30m | ||
|
Max. Length of Extended Earth Lead |
10m | ||
| Protection Class | IP23 | ||
| Cooling Mode | Air Cooling | ||
| Case Material | Steel + Spray Painting | ||
| Dimension (LxHxW) | 430mm×230mm×320mm | ||
| Handle | Yes | ||
| Weight of Machine | 18kg | 19kg | 20kg |
| Weight of Welding Gun | 0.7kg | ||
| Standard Welding Gun | SRQ3/SRQ5 | ||
IKING SSR Series Capacitor Discharge Stud Welding Machine Features
1. Resistance is completely removed, eliminating the biggest source of heat.
2. Lower operating temperature helps extend working life effectively.
3. Smaller cooling fan, lower noise level.
4. Self-designed, completely strong and weak current isolation by Texas Instruments isolation Chip.
5. Industrial level electric components, wide range operating temperature -40℃~ +85℃. (0℃ ~+70℃ for commercial level)
6. Semiconductor discharge switch with much longer working life instead of the commonly used relay in the market.
IKING SSR Series Capacitor Discharge Stud Welding Machine Applications
Complete sets of cabinets for electrical appliances, household appliances, sheet metal processing, steel plate fixing studs, button fixing on elevator panels, mechanical parts, fixing of oil and gas pipelines in some automobile industries, kitchen equipment, heat preservation nails in the shipbuilding industry, etc.
