Suspended submerged arc welding machine (IGBT)

This advanced submerged welding system adopts IGBT inverter technology for stable arc performance, energy efficiency, and high-speed welding. Ideal for thick plates, large structures, and industrial manufacturing, this SAW welding machine ensures precision and reliability.
1. High Efficiency: Inverter power supply delivers stable current and reduces energy loss for consistent welding quality.
2. Superior Control: MZK-BG controller ensures precise arc control, automatic voltage compensation, and smooth wire feeding.
3. Robust Wire Feeder: YT wire feeder supports heavy-duty sub arc machines with strong feeding force and wide wire diameter range (Φ3.2–Φ5).
4. Wide Applications: Perfect for shipbuilding, bridges, heavy structures, and steel fabrication industries.
5. Compact & Reliable: Lightweight, durable, and designed for high-deposition-rate suspended welding.Stable performance，Easy to operate.

Overview
Recommended Products

Place of Origin:	CHINA
Brand Name:	IKING
Certification:	CCC
Minimum Order Quantity:	1

Description：(IGBT)

This welding machine uses inverter technology to convert AC into high-frequency DC, and is used in conjunction with the suspended submerged arc welding process to achieve efficient and high-quality metal welding. The use of the inverter circuit makes the welding machine lighter, more stable and more economical. The suspended submerged arc welding process is suitable for welding thick plates and large structures.

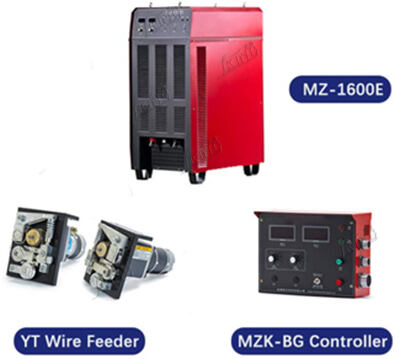

This Suspended submerged arc welding machine system is a submerged arc automatic welding machine composed of an MZ-E series submerged arc welding power supply, an MZK-BG controller, and a YT wire feeder head (left or right).The power supply adopts thyristor rectification, which can quickly and automatically compensate for network fluctuations, to ensure the stability of the arc and the convenience of adjusting the output current.

System features

1. Inverter power supply technology makes the welding current more stable, which can provide higher arc stability and electrode welding efficiency.

2. The inverter power supply can provide better electrical performance at the same power, and therefore uses less electricity.

3. Due to its specialized design for the production of suspended equipment, high-power electrodes can be used to achieve a higher metal deposition rate during rapid welding.

Specifications：

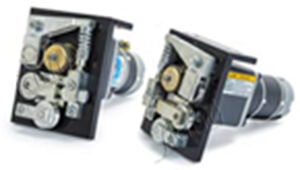

1.1.1 YT Wire Feeder (IGBT)

Name	Parameter
Power	165W
Rated Speed	20 RPM
Wire Diameter	Φ2.4-Φ6mm
Installation Dimensions	4-M10 screw holes, hole spacing 110×25mm
Maximum Motor Current	≤2A
Maximum Wire Feeding Speed	3m/min
Rated Motor Voltage	110VDC
Rated Welding Current	1600A (60%)
Dimensions (L × W × H)	278×154×188 mm
Weight (excluding wire & flux)	11Kg

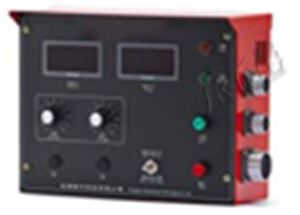

1.1.2 MZK-BG Suspended Submerged Arc Welding Controller (IGBT)

Name	Parameter
Output Voltage for Wire Feeder Motor	10~110VDC
Excitation Voltage for Wire Feeder Motor	110VDC
Input Power Supply	120V±20%, 50/60Hz
Rated Output Power for Wire Feeder Motor	200W
Maximum Operating Temperature	45°C
Enclosure Protection Level	IP21
Weight	4.5Kg
Dimensions (L × W × H)	307×126×267 mm

1.1.3 MZ-E Series Submerged Arc Welding Power Supply (IGBT)

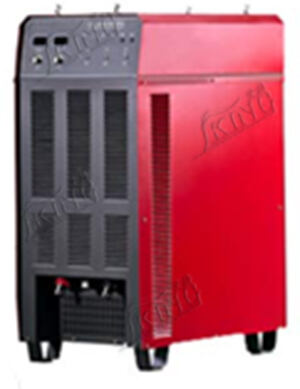

Name	Unit	MZ-1250E	MZ-1600E
Power Supply Input Voltage/Frequency	V/Hz	AC3×380/50	AC3×380/50
Minimum Grid Capacity	KVA	100	120
Generator Capacity	KVA	150	150
Rated Input Current	A	120	154
Open Circuit Voltage	V	78	78
Rated Welding Current	A	1250	1600
Rated Welding Voltage	V	44	44
Rated Duty Cycle	%	100	100
Voltage Output Range (CC Mode)	V	23.6~44	22.4~44
Voltage Output Range (CV Mode)	V	22~44	15~44
Current Output Range	A	90~1250	120~1600
Full Load Efficiency	%	89	89
Full Load Power Factor	-	0.88	0.88
User Air Switch Capacity	A/V	160/380	200/380
Three-Phase Input Cable Section	mm²	25	35
Welding Cable Section	mm²	140 or 70×2	140 or 70×2
Dimensions (L × W × H)	mm	823×371×840	944×583×1414.5
Weight	Kg	105	242

Applications:

1. Heavy structural welding.
2. Large-scale steel fabrication.
3. Shipbuilding and offshore structures.
4. Bridge and heavy equipment manufacturinga.

Advantages

1. Features of MZ-E series arc welding power supply

MZ-E series inverter submerged arc welding machine is an energy-efficient submerged arc welding equipment using IGBT inverter technology, suitable as a power source for arc welding, manual arc welding and gas shielded welding. It can weld carbon structural steel, low alloy structural steel, stainless steel, heat-resistant steel and its composite steel, etc. The rated welding current of the welding machine corresponds to the corresponding rated load duration rate. When the load duration rate increases, the maximum output current of the welding machine decreases accordingly. For example, when the load duration rate increases from 60% to 100%, the maximum output current is 0.7746 times the rated welding current.

1. Using IGBT inverter technology to ensure that the welding specification is highly stable when the grid voltage and arc length change.

2. High efficiency and power factor, thus having significant power saving effect and high grid utilization rate.

3. Wide current adjustment range, can be used for arc welding and manual arc welding.

4. The welding current can be preset.

5. Suitable for fine wire and thick wire submerged arc welding respectively.

6. Small size and light weight.

2. Features of YT wire feeder

YT wire feeder is a special wire feeding mechanism for submerged arc welding, suitable for feeding welding wire with a diameter range of 3.2~Φ5. With MZK, MKE-9G or MZK-BG controller and MZ, MZ-L or

MZ-B submerged arc welding power source, automatic arc welding can be realized on gantry or cantilever welding machine.

1. Square box gear reducer is adopted.

2. V-groove wire feeding wheel is adopted, with hobbing in the groove, and the wire feeding force is large.

3. The motor and wire feeding mechanism are insulated, with good electrical insulation performance.

4. The wire pressing spring has a large travel and a large adjustment range of the wire pressing force.

3. Features of MZK-BG controller

MZK-B submerged arc welding controller is a new generation of arc welding controller independently developed by our factory and used in conjunction with our MZ-B inverter submerged arc welding power supply. The controller adopts mature and reliable control technology and control theory, deeply understands user needs, and achieves a perfect combination of advancement and applicability.

1. Suitable for nozzle electroslag welding and submerged arc welding processes.

2. Automatically compensates for network voltage and arc fluctuations, and the welding process parameters are stable.

3. It has the function of slow wire feeding and arc ignition and the function of wire retraction when welding is finished.

4. It is specially used in conjunction with MZ-B inverter arc welding machine. Current, voltage and welding speed can be preset.

5. When feeding wire in an inching manner, the wire automatically stops feeding when it contacts the workpiece to prevent the wire from bending and affecting arc ignition. Welding wire can be forced to feed wire when bonding workpieces.
