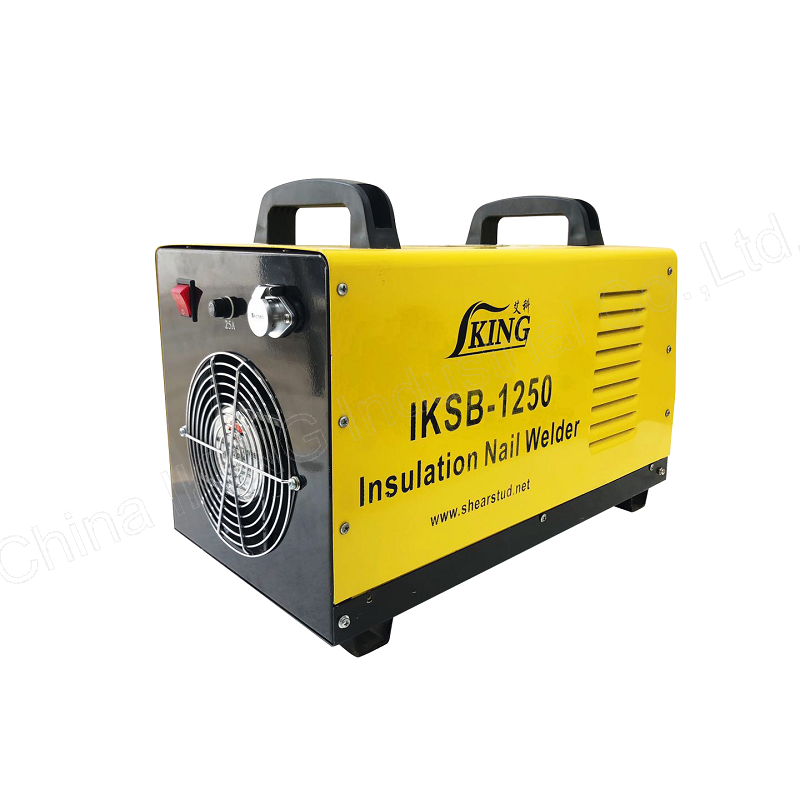

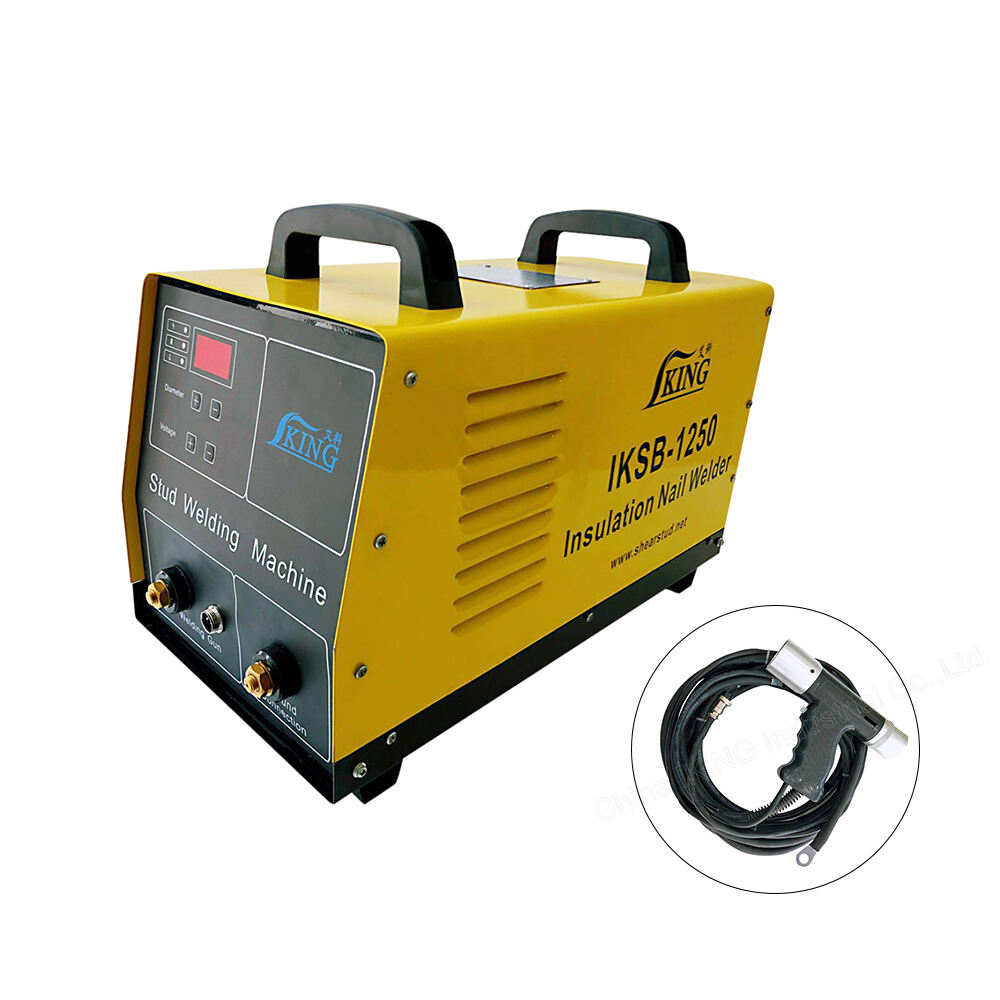

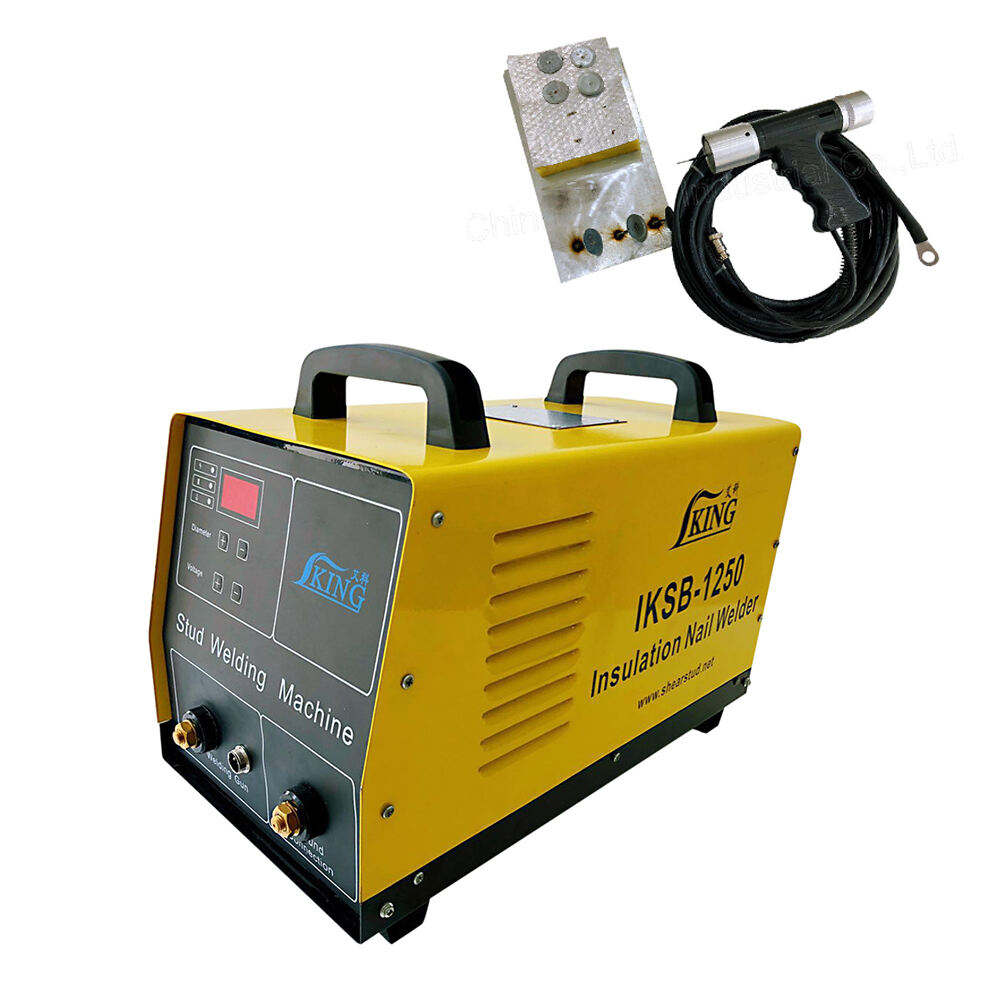

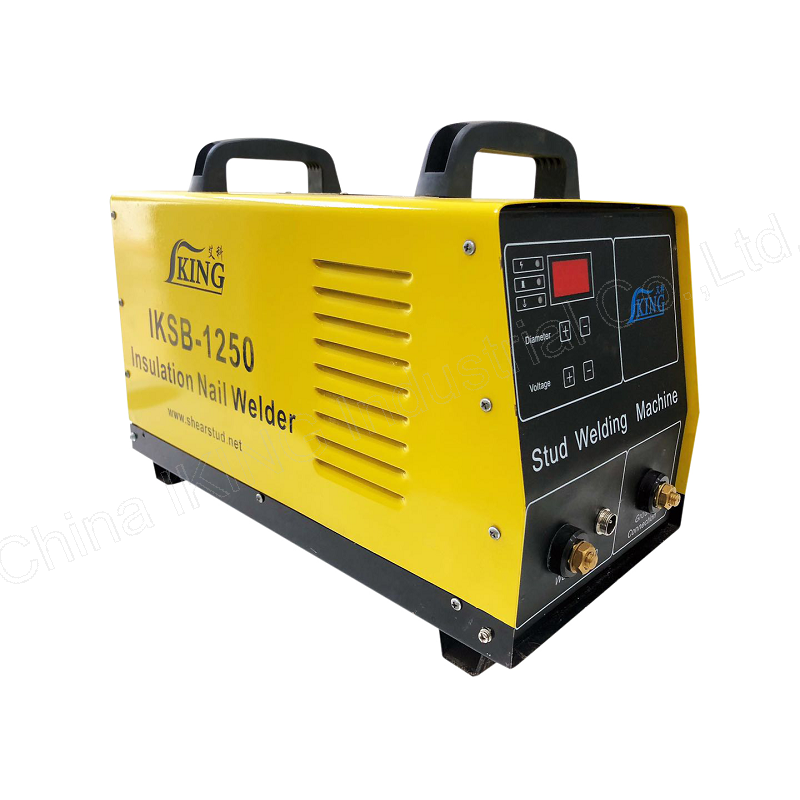

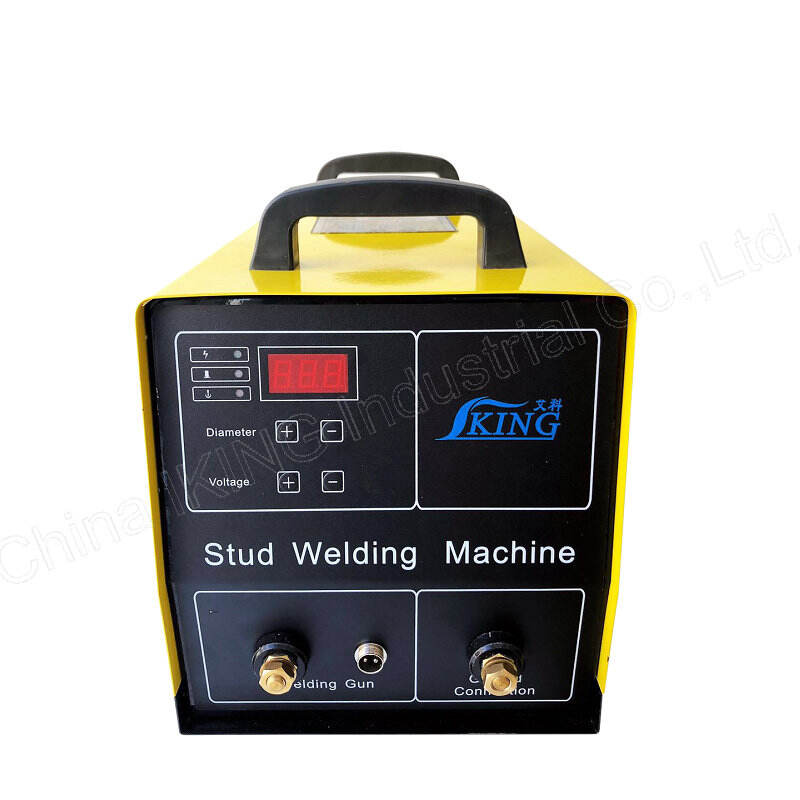

IKING SB series CD Insulation Pin Stud Welder Description
The SB series capacitor heat storage nail energy storage welding machine discharges the tip of the welding nail through the capacitor energy storage voltage, and can weld heat insulation nails with a diameter of 2-3mm and similar welding nails on a thin plate with a thickness of 0.3mm or more.
IKING SB series CD Insulation Pin Stud Welder Technical Data Sheet
| Model | IKSB-630 | IKSB-1250 |
| Stud Weld Range | M1-3mm | M1-5mm |
| Max Weld Current | 630J | 1250J |
| Charging Time | 0~3S | |
| Max Weld Speed | 20pc/M3/min | 20pc/M5/min |
| 32pc/M1/min | 32pc/M2/min | |
| Applied Patent | CD (Capacitor Discharge) Stud Welding Machine | |
| Power Input | 110~220V/50~60Hz | |
| Allowable Input Voltage Fluctuation Range | ±10% | |
| Power Cable Spec. | 3*1.5mm² | |
| Control Cable Spec. | 2*0.5mm² | |
| Max Length of Extension Welding Cable | 10m | |
| Max Length of Earth Lead Cable | 5m | |
| Protection Class | IP21 | |
| Dimension (L x W x H) | 390mm*215mm*255mm | |
| Machine Weight | 13kg | 20kg |
| Standard Stud Gun | SRQ4 | |
IKING SB series CD Insulation Pin Stud Welder Features
Apply lKNG "Capacitor Discharge Stud Welding Machine" utility model patent; Fully digital control of microprocessor, digital display of charging voltage; Preset process parameters, select the stud diameter to automatically match the charging voltage .and the parameters are automatically memorized: Specially designed strong and weak electrical isolation, overheatingprotection technology, strong anti-interference ability; The charging is triggered at the zero crossing point, without generating harmonics inthe power grid, and without interference to other equipment, The equipment is powered off and actively discharges the storedenergy to prevent the danger of electric shock; Full-power toroidal pure copper transformer, durable and durable, The core components are imported internationally, such as: Tl, Microchip, NXP, ON, ST, MPSand other brands.
IKING SB series CD Insulation Pin Stud Welder Applications
Welding of disc type insulation nails on central air conditioning ventilation ducts,welding of insulation nails on insulation cotton of precision instruments/equipment, etc.
