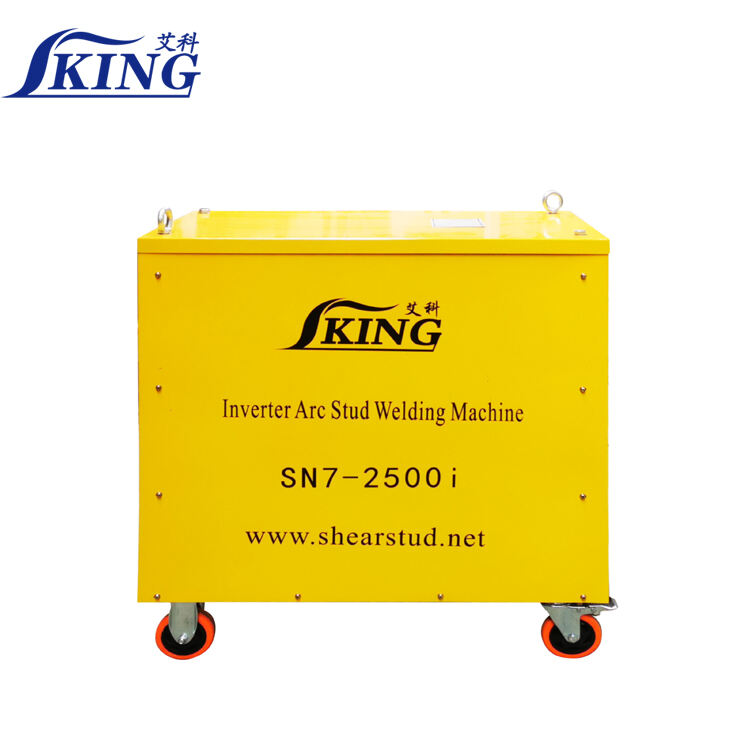

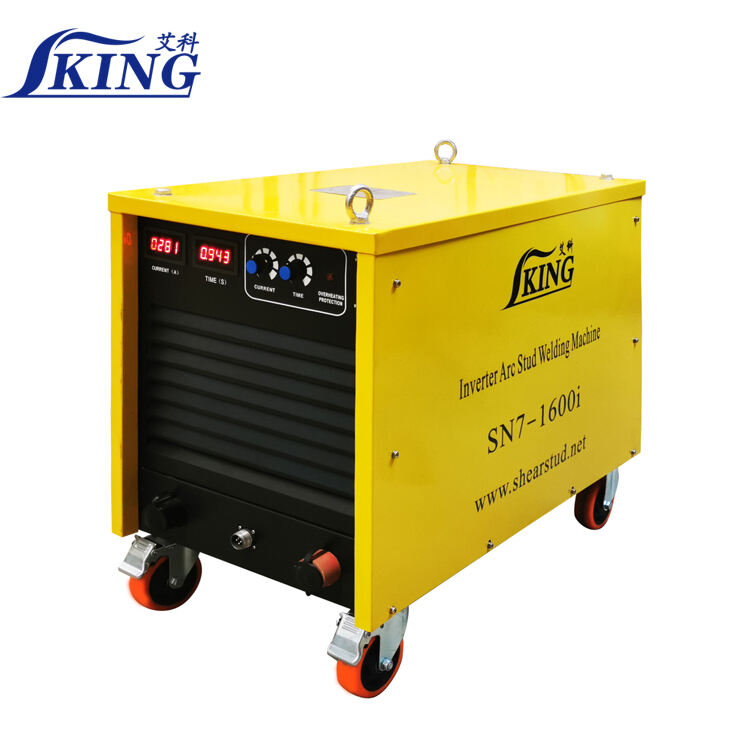

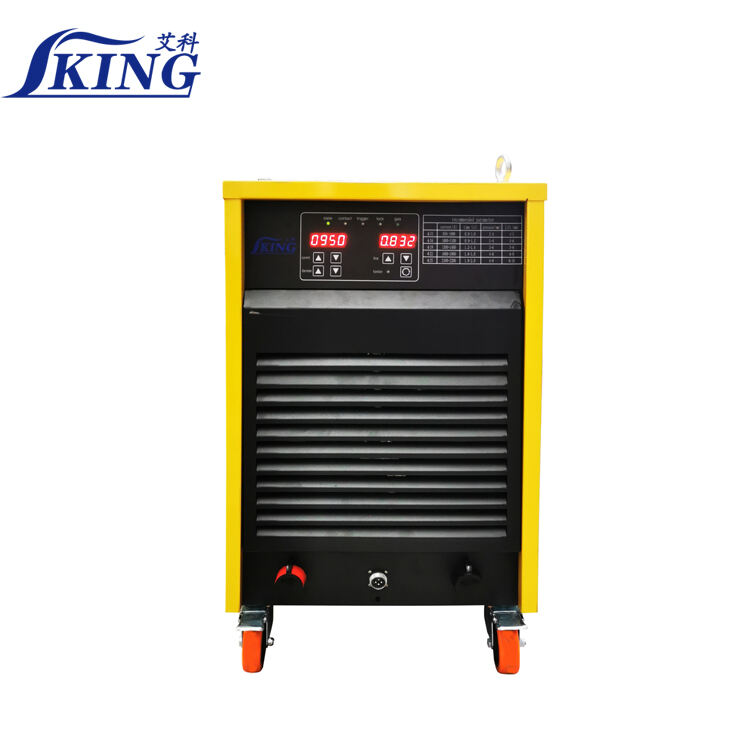

Description of SN7-i Series IGBT Inverter Arc Stud Welding Machine
The SN7-i series inverter arc stud welder is designed using lGBT high frequency soft switching inverter technology. The power supply consists of core components such as high-power lGBT, high-frequency transformer, fast recovery diode, and digital control circuit. lt can weld studs of M8-28 diameter to thicker motherboards.
| Model | SN7-1600i | SN7-2500i | SN7-3150i |
| Stud Weld Range | Φ8-19mm | Φ8-25mm | Φ10-28mm |
| Max Weld Current (A) | 1600 | 2500 | 3150 |
| Regulated Output (A) | 100-1600 | 300-2500 | 400-3150 |
| Max Weld Speed | 10pcs/min (M16) | 10pcs/min (M22) | 10pcs/min (M25) |
| Input Voltage | 3 phase 380VAC/50Hz, other voltages available | ||
| Air Switch Specifications (A) | 100A | 120A | 160A |
| 4 Core Control Cable Specification (m/mm) | 4×1mm² | ||
| Permissible Supply Voltage Fluctuation Range(%) | ±10% | ||
| Case protection level | IP23 | ||
| Cooling Method | F | ||
| Case Material | Anti-Corrosion Coating of Steel Housings | ||
| Machine External Dimensions (mm) | 700mm*420mm*600mm | 800×460×800mm | |
| Machine Weight (kg) | 75 | 95 | 105 |
| Swivel Castors / Fixed Castors | 2/2 | ||
| Lifting Rings | 2 | ||
| Automatic Welding Function Interface | Optional | ||
| Standard Stud Welding Gun | SNQ9 | ||
Features:
High frequency inverter technology, small size, light weight, and high energy density. The core control component of the main machine is a PLC microcontroller; the welding current and welding time outputs are more accurate.
Core components are selected from international top brands; the Anti-repeat welding function can eliminate the secondary welding caused by the equipment or accessories damage.
One machine for multiple uses: simple conversion between stud welding and manual arc welding, easy to use.
Fields of application: construction site stud welding in the steel construction industryWelding of water-cooled or Y-shaped nails in industrial furnaces.Wear-resistant stud welding in the mechanical engineering industry.
