MZ-1250F Suspended submerged arc welding machine (industrial universal type)

Description：

Suspended Submerged Arc Welding Machine (Industrial Universal Type)

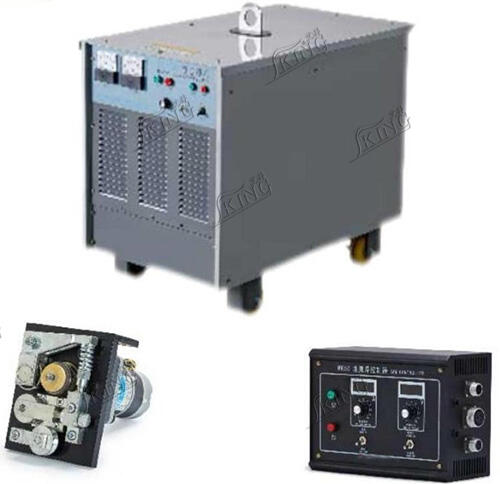

This welding system is composed of an MZ-F series submerged arc welding power source, an MK6G controller, and a YT wire feeding head (available in left or right configurations). It is a highly efficient automatic submerged arc welding machine designed for industrial applications that require precision, stability, and reliability.

The power source adopts a silicon-controlled rectifier (SCR) technology, which provides rapid automatic compensation for fluctuations in the power supply network. This ensures arc stability and allows for convenient adjustment of the output current, making the welding process smoother and more reliable. The system is particularly suitable for welding large metal structures, pipelines, and heavy-duty industrial components where deep penetration and strong weld seams are required.

One of the key advantages of this system is its suspended design, which enables greater flexibility and adaptability in various industrial settings. The welding head can be positioned precisely to accommodate different workpiece sizes and orientations, allowing for high-quality welds with minimal manual intervention. This feature also helps in reducing operator fatigue and increasing productivity in large-scale welding operations.

The MK6G controller plays a crucial role in regulating welding parameters, ensuring precise control over voltage, current, and wire feeding speed. This level of control enhances weld consistency and reduces defects, making the system ideal for applications requiring high-strength, durable welds.

The YT wire feeding mechanism ensures smooth and stable wire delivery, minimizing interruptions and enhancing overall welding efficiency. Whether used in heavy machinery, shipbuilding, steel structure manufacturing, or other industrial fields, this system provides a robust and dependable solution for submerged arc welding needs.

In conclusion, the Suspended Submerged Arc Welding Machine (Industrial Universal Type) is a high-performance, automated welding system that integrates advanced power control, efficient wire feeding, and precise welding regulation. Its ability to compensate for power fluctuations, maintain arc stability, and adapt to various work environments makes it an essential tool for industries requiring high-quality submerged arc welding.

Specifications：

1.1.1 Suspended Submerged Arc Welding Machine (Industrial Universal Type)

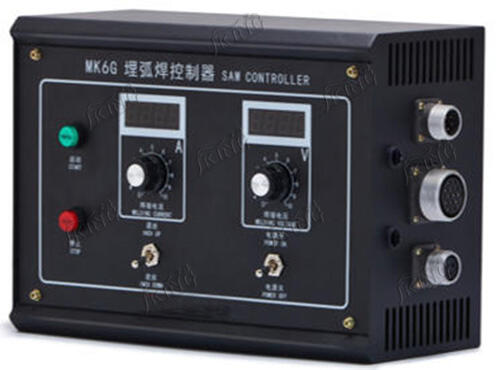

MK6G Submerged Arc Welding Controller

YT Wire Feeder

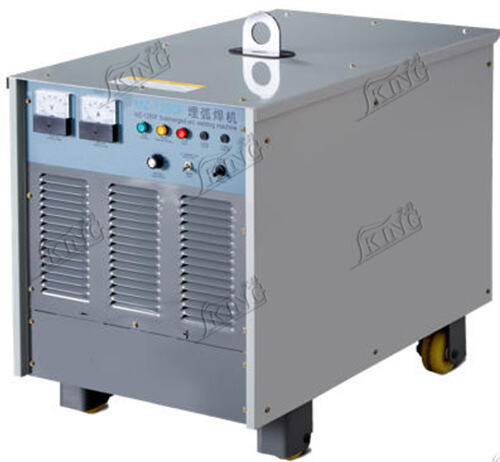

MZ-F Series Submerged Arc Welding Power Source

Quick Detail:

Suspended Submerged Arc Welding Machine (Industrial Universal Type)

Description:

Suspended Submerged Arc Welding Machine (Industrial Universal Type)

The Suspended Submerged Arc Welding Machine (Industrial Universal Type) is a high-performance automated welding system designed for precision, stability, and efficiency in industrial applications. It consists of an MZ-F series power source, MK6G controller, and YT wire feeder (left or right configuration), making it ideal for heavy-duty welding operations in industries such as shipbuilding, steel structures, pipelines, and heavy machinery manufacturing.

Applications:

· Shipbuilding & Offshore Structures – Provides deep penetration and strong welds for marine environments.

· Steel Structure & Heavy Machinery – Ensures high-strength, defect-free welds for industrial components.

· Pipeline & Pressure Vessel Welding – Delivers stable, high-quality welds for critical infrastructure.

Specifications:

Competitive Advantage:

Key Features & Competitive Advantages

Compared to traditional welding methods, this suspended submerged arc welding system offers:

✔ Higher efficiency – Automated operation reduces manual workload.

✔ Superior weld quality – Consistent arc stability and precise parameter control.

✔ Cost savings – Reduced material waste and improved productivity.

✔ Versatile adaptability – Suitable for large-scale industrial applications with varying workpiece sizes.

This system is the ideal solution for industries requiring high-quality submerged arc welding with enhanced efficiency and precision.

Advanced Power Control

The SCR-controlled power source provides automatic compensation for voltage fluctuations, ensuring stable arcs and consistent welding quality.

Allows precise adjustment of output current, improving weld reliability and reducing defects.

Suspended Design for Maximum Flexibility

Enables easy positioning of the welding head to accommodate various workpiece sizes and orientations.

Reduces operator fatigue and enhances productivity in large-scale welding operations.

MK6G Controller for Precision Welding

Regulates voltage, current, and wire feeding speed, ensuring uniform weld quality.

Enhances weld consistency and minimizes defects, making it ideal for high-strength applications.

High-Performance YT Wire Feeder

Supports 3.2mm to 5.0mm wire diameters, enabling versatile welding capabilities.

Equipped with a square box gear reducer and V-groove wire feeding wheel for smooth and powerful wire delivery.

Features excellent electrical insulation and adjustable wire pressing force, optimizing performance for various welding conditions.
