Trolley type submerged arc welding machine (IGBT)

The Trolley Type Submerged Arc Welding Machine (IGBT) offers stable, high-efficiency performance for steel fabrication. This advanced submerged arc welding machine for sale combines inverter control and automation for precise, energy-saving welding.
1. Advanced IGBT Inverter Power：Ensures stable arc performance, smooth welding, and high efficiency for consistent quality.
2. Multi-Process Capability：Supports SAW, MMA, and GMAW — ideal for carbon steel, stainless steel, and alloy applications.
3. Intelligent Control System：Preset current, voltage, and speed for precise, automated sub arc welding operations.
4. Compact & Easy to Operate：Lightweight trolley design with a low center of gravity ensures smooth, stable movement.
5. Energy Saving & Industrial Use：High power factor reduces energy use; perfect for steel structures, shipbuilding, and pipelines.

Overview
Recommended Products

Place of Origin:	CHINA
Brand Name:	ZG
Model Number:	MZ-1250B WT-MZ
Certification:	CCC
Minimum Order Quantity:	1SET

Description：(IGBT)

Trolley type submerged arc welding machine system is an arc welding automatic welding machine composed of an MZ-B series submerged arc welding power source,a WT-MZ (with inverter controller) light trolley,which is suitable for arc welding under flux layer.

It can weld carbon structural steel, low alloy structural steel,stainless steel,heat-resistant steel and its composite steel, etc.

Specifications：

1.1.1 WT-MZ Submerged Arc Welding Trolley (With Inverter Power Source)

Name	Parameter
Welding Head Rotation Angle	360°
Welding Head Left/Right Rotation Angle	±45°
Welding Head Side Inclination Angle	±90°
Welding Head Vertical Adjustment Range	140mm
Welding Head Horizontal Adjustment Distance	100mm
Rated Welding Current	1600A (60%)
Wire Diameter	Φ3-Φ6mm
Wire Feeding Speed	20-200cm/min
Welding Speed	20-205cm/min
Weight (excluding welding wire and flux)	68Kg
Dimensions (mm)	1010×470×790
Rated Power Supply Voltage	1-50Hz 120V/3A

1.1.2MZ-B Series Inverter Submerged Arc Welding Power Source

Name	Unit	MZ-1000B	MZ-1250B
Weight	KG	95	100
No-Load Voltage	V	78	90
Rated Welding Voltage	V	44	44
Full Load Efficiency	%	89	89
Rated Input Current	A	83	100
Power Factor at Full Load	-	0.88	0.88
Rated Welding Current	A	1000	1250
Current Output Range	A	60-1000	90-1250
Voltage Output Range	V	CC: 22.4-44 CV: 22-44	CC: 23.6-44 CV: 22-44
Rated Duty Cycle	%	100	100
Welding Cable Cross-Section	mm²	140 or 70×2	140 or 70×2
Three-Phase Input Cable Cross-Section	mm²	16	25
User Air Switch Capacity	A/V	120/380	160/380
Power Supply Input Voltage/Frequency	V/Hz	AC3×380	AC3×380
Dimensions (W×H×L)	mm³	823×371×840	823×371×840
Rated Input Power	KW	56	70

Competitive Advantage:

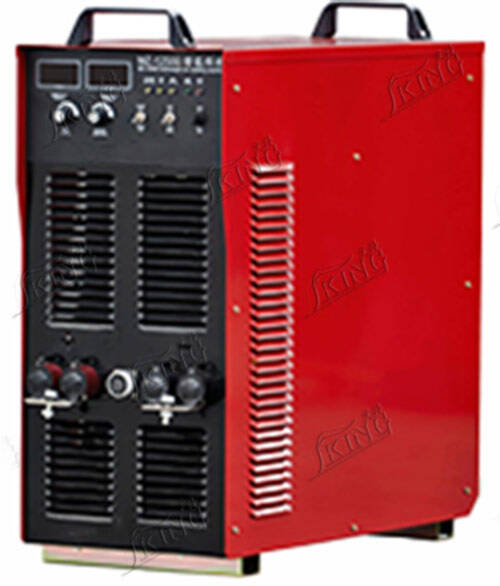

Features of MZ-B series submerged arc welding power supply

MZ-B inverter series submerged arc welding machine is an efficient and energy-saving arc welding equipment using IGBT inverter technology. It is suitable as a power supply for submerged arc welding, manual arc welding and gas shielded welding. This power supply is versatile and suitable for a wide range of industrial applications.It can weld carbon structural steel, low alloy structural steel, stainless steel, heat-resistant steel and its composite steel, etc.

1. The welding current can be preset.
2. Small size and light weight.
3. It has the function of slow wire feeding arc ignition and wire retraction when welding is finished.
4. The current adjustment range is wide and can be used for submerged arc welding and manual arc welding.
5. The efficiency and power factor are high, so there is a significant power saving effect and a high grid utilization rate.
6. The IGBT inverter technology is used to ensure that the welding specifications are highly stable when the grid voltage and arc length change.
7. When the wire is fed in an inching manner, the wire automatically stops feeding when it contacts the workpiece to prevent the wire from bending and affecting the arc ignition. The wire can be forced to feed when the wire is bonded to the workpiece.

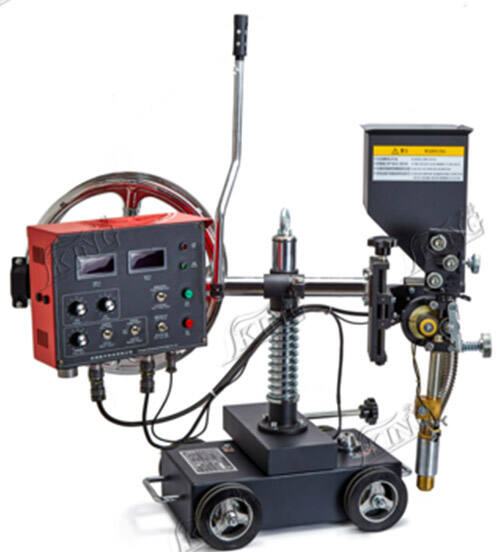

Features of the WT-MZ Welding Cart:

This welding cart uses a lead screw and nut for horizontal adjustment. The slide guide structure is integrated with the base, resulting in a low center of gravity, ensuring stability, reliability, and smooth, flexible adjustment. Vertical feed utilizes a lead screw and nut and slide guide, with a bearing-equipped rotating shaft for flexible rotation. The structure is simple and easy to operate. The wire feeding geared motor and cantilever arm are integrated, resulting in lightweight construction, a reasonable center of gravity distribution, and a neat appearance, increasing the stability of the welding cart during the welding process. The column has a large lifting range and flexible operation; the conductive rod can be extended arbitrarily; the improved nozzle tee structure and easily machined conductive nozzle further facilitate the welding of H-beams, plates, and pressure vessels.

Specifically designed for use with the MZ-B inverter submerged arc welding machine. Current, voltage, and welding speed can be preset. During jogging wire feeding, the wire automatically stops feeding upon contact with the workpiece to prevent wire bending and interference with arc ignition. Forced wire feeding is possible when the wire adheres to the workpiece. Suitable for electroslag welding and submerged arc welding processes, featuring slow wire feeding for arc ignition and wire retraction at the end of welding. Automatically compensates for grid voltage and arc fluctuations, ensuring stable welding process parameters.

Applications:

The MZ-B series power supply is ideal for industries requiring high-efficiency, precision welding in heavy machinery, shipbuilding, steel structure fabrication, pressure vessel manufacturing, and pipeline welding. Its stable performance and energy-saving design make it a reliable and cost-effective choice for large-scale industrial welding operations.
