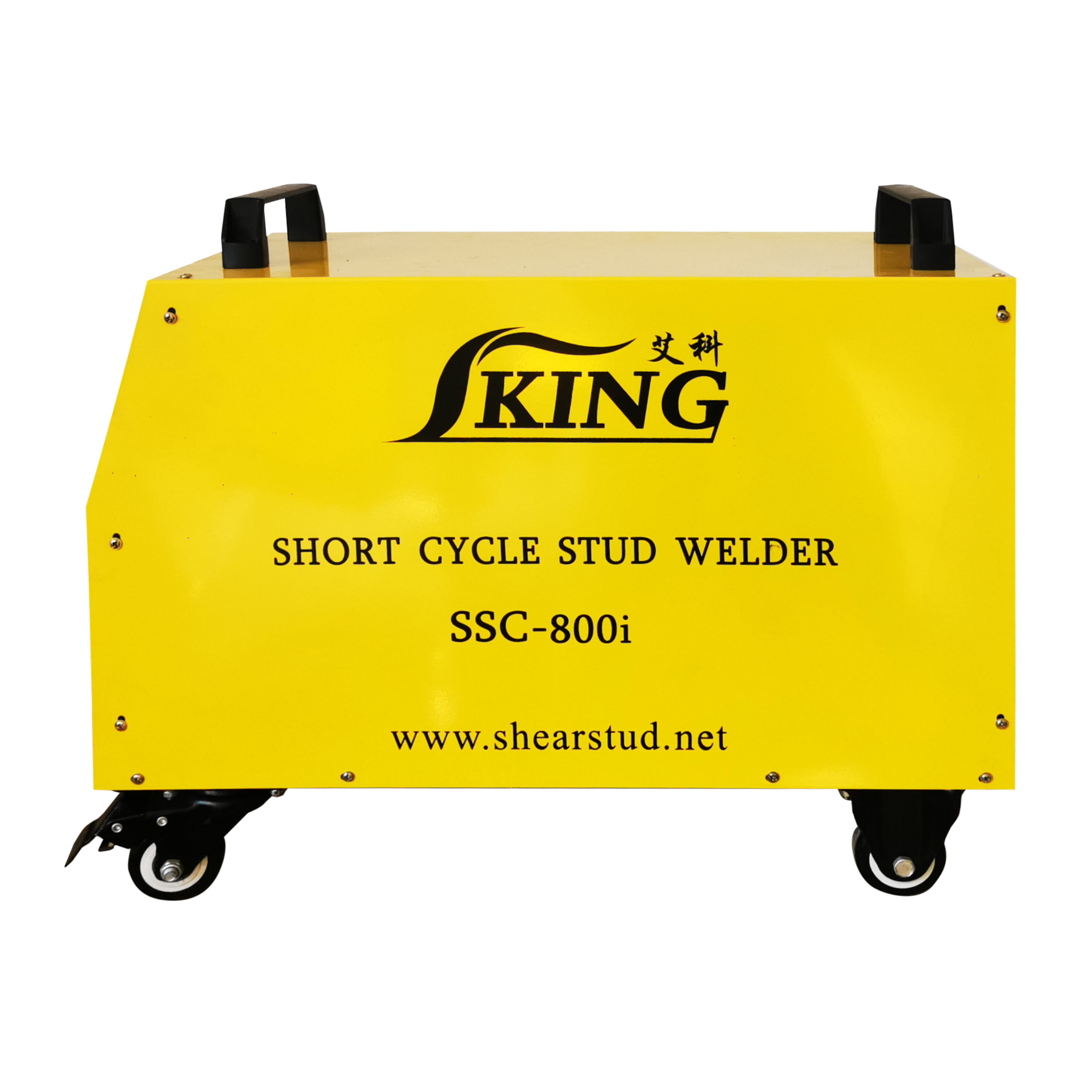

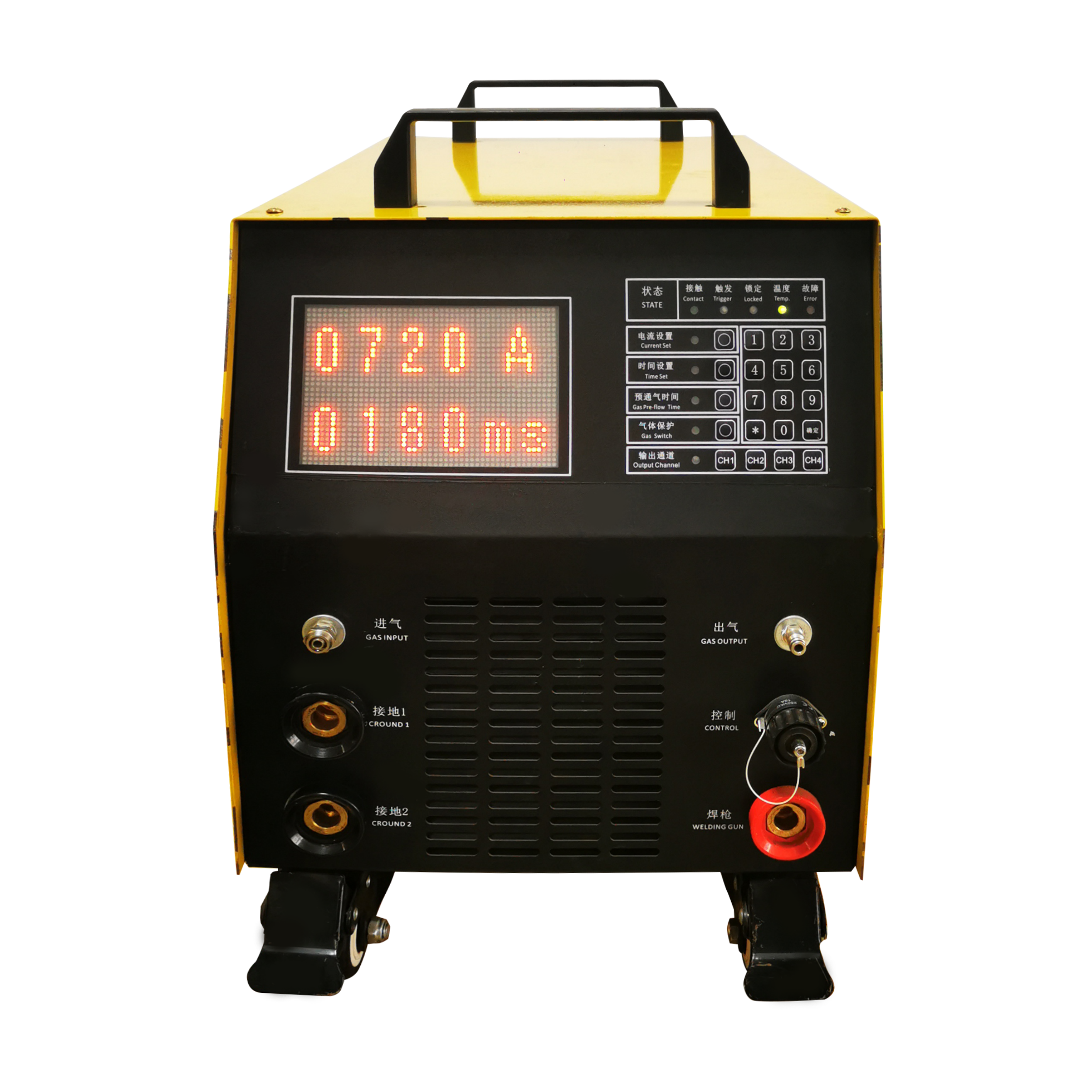

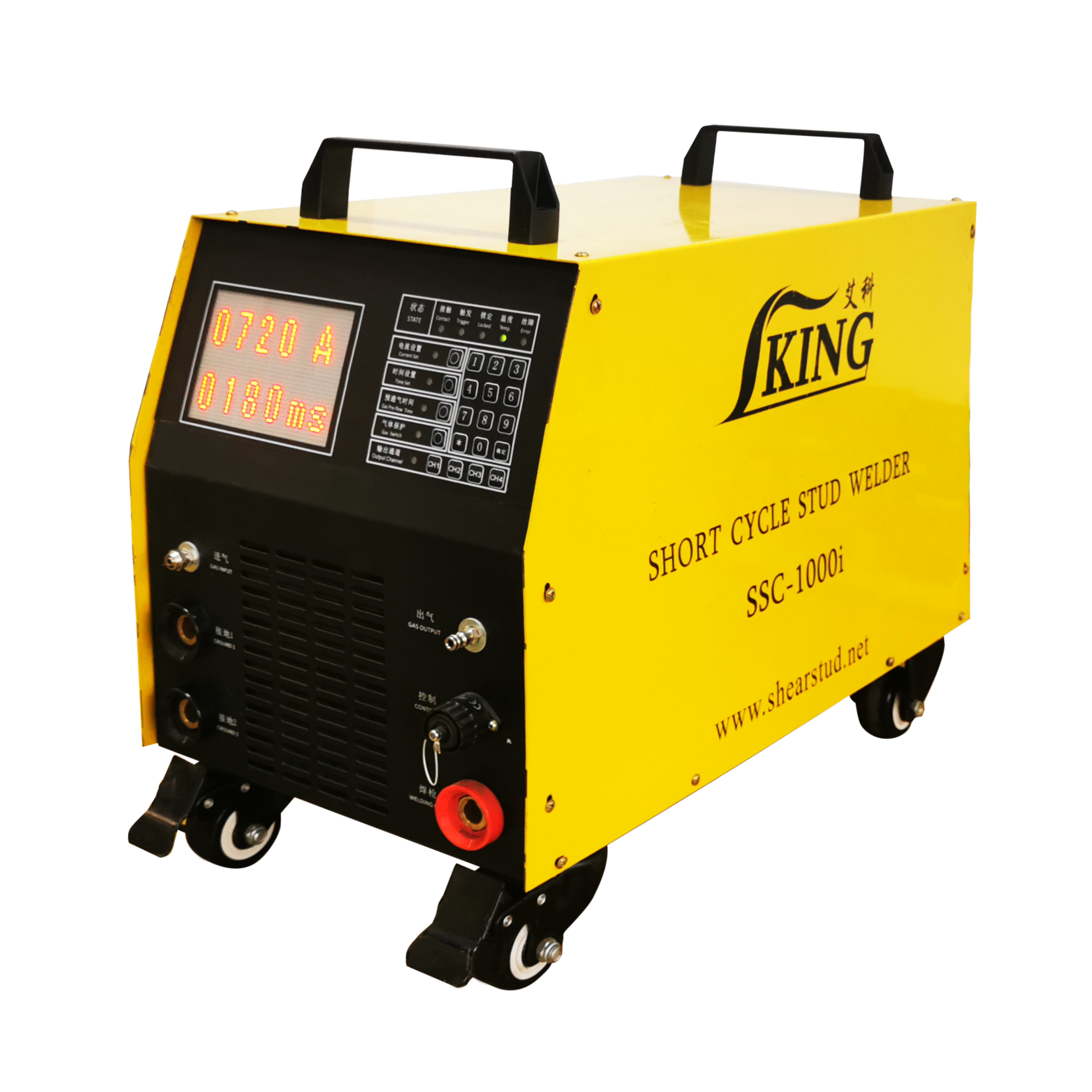

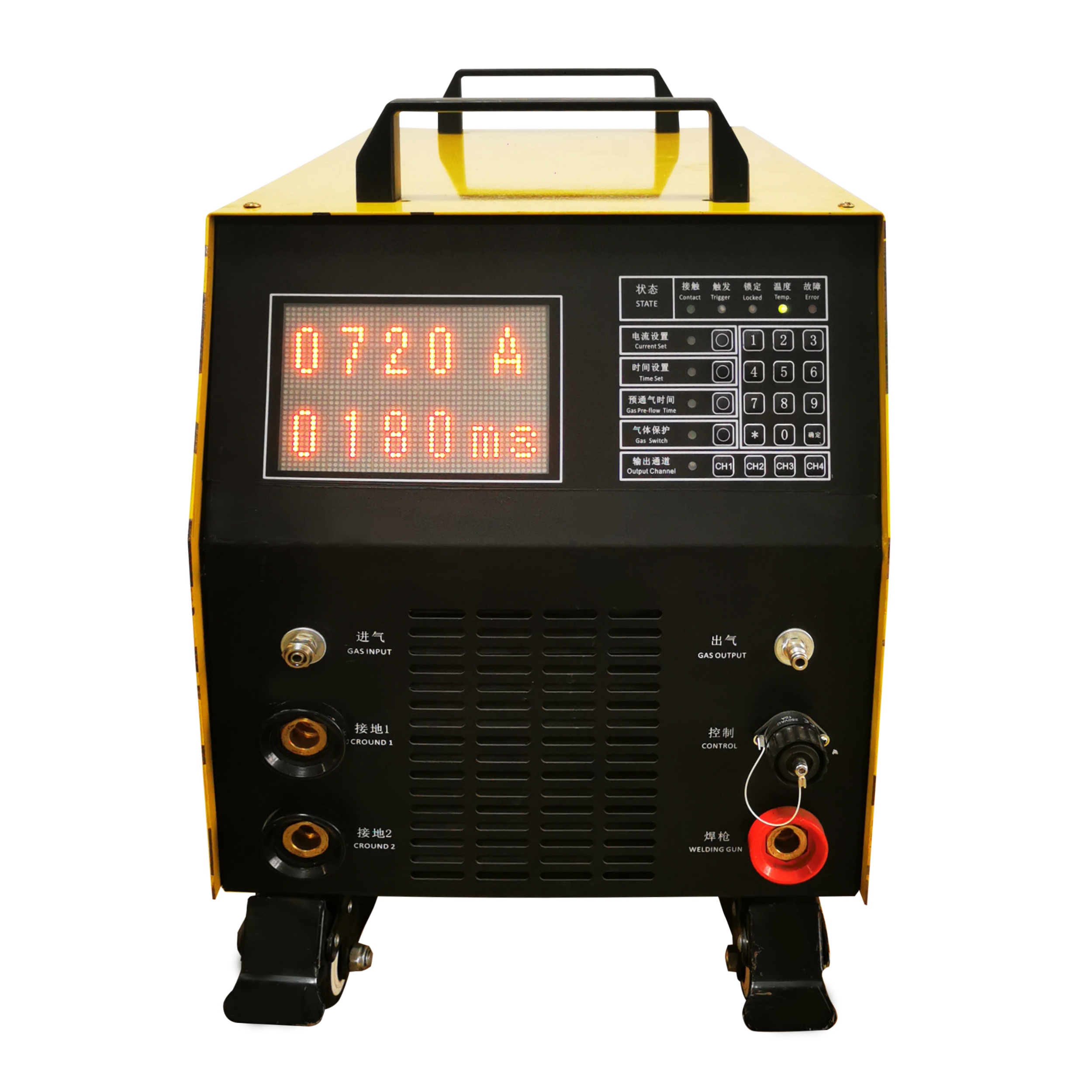

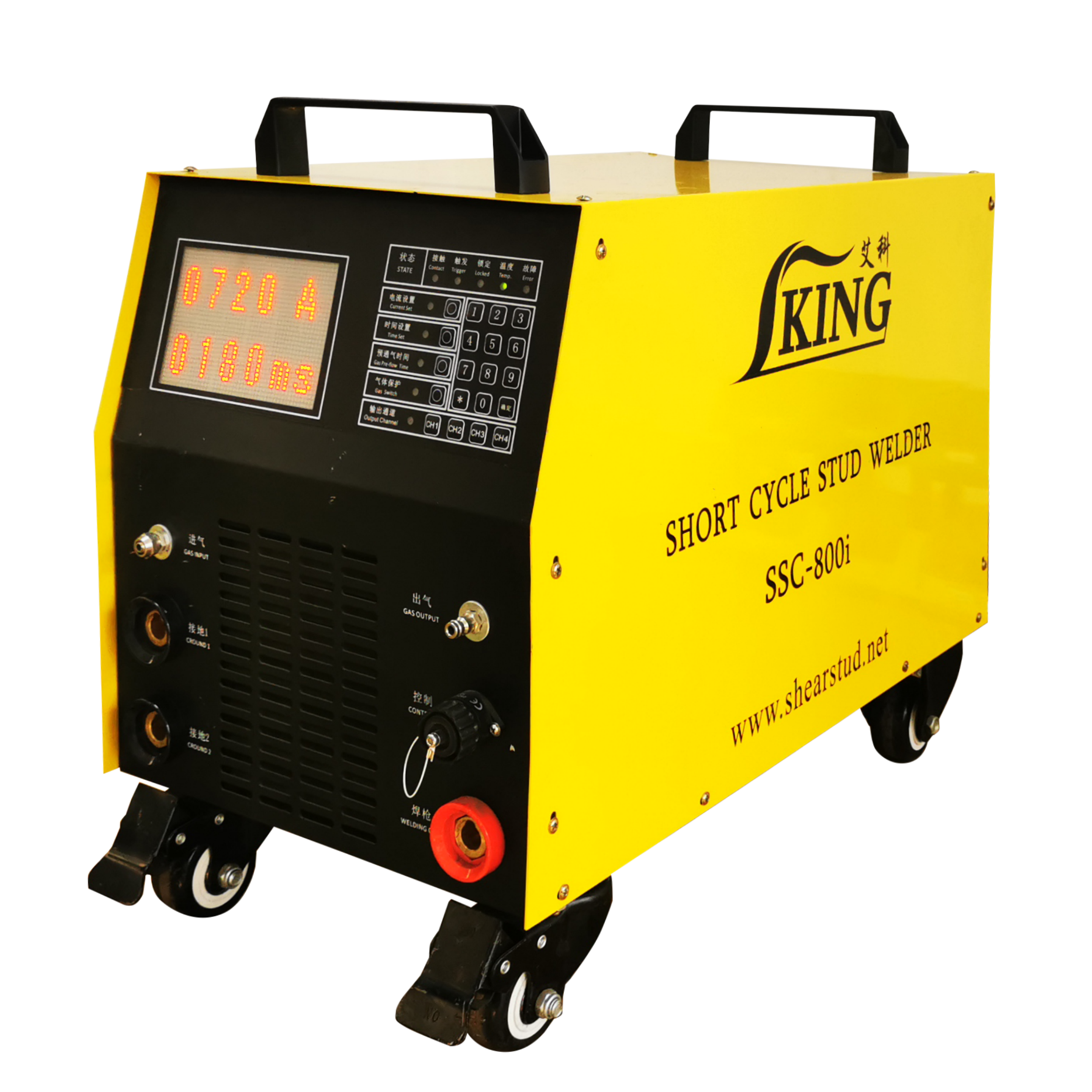

IKING Ssc Series Inverter Arc Stud Welder Description
SSC series short cycle arc stud welding machine can weld studs below M12 (inclusive) on a relatively thin mother board in a very short time (the thickness of the mother board is greater than 1/8 of the diameter of the stud). There are three modes to choose from: gas protection, porcelain ring protection, and no protection.
IKING Ssc Series Inverter Arc Stud Welder Technical Data Sheet
| Model | SSC-800i | SSC-1000i |
| Circuit topology | Full bridge inverter, full wave rectification | |
| Power Input | 3phase,380~440VAC/50-60Hz | |
| Allowable Input Voltage Fluctuation Range | ±10% | |
| Power Cable Spec. | 3*10mm² + 1*6mm² | |
| Solderable stud material | Carbon steel, stainless steel, aluminum, etc. | |
| Main Circuit | IGBT | |
| Ferrule protection welding range | 3-12mm | 3-14mm |
| Short cycle welding range | 3-8mm | 3-12mm |
| Gas shielded welding range | 3-10mm | 3-12mm |
| Max Weld Current | 800A | 1000A |
| Arc ignition current range | 30-100A | |
| Ignition time range | 10-100ms | |
| Main arc current range | 100-1000A | |
| Main arc time range | 5-1000ms | |
| Nail drop time range | 4-50ms | |
| Upsetting current range | 100-1000A | |
| Upsetting time range | 4-50ms | |
| Pre-ventilation time range | 500-2000ms | |
| Max Weld Speed | 25pcs/min (M8) | 25pcs/min (M12) |
| Control Cable Spec | 7*1mm² | |
| Max Length of Extension Welding Cable | 20m | |
| Max Length of Earth Lead Cable | 10m | |
| Cooling Method | Air Cooling | |
| Protection Class | IP23 | |
| Dimension (L x W x H) | 600mm*320mm*400mm | 600mm*320mm*400mm |
| Machine Weight | 35kg | 38kg |
IKING Ssc Series Inverter Arc Stud Welder Features
1. The power supply has a very high load regulation rate, which can output a large welding current in a very short time.
2. Very short welding time, welding can be completed within tens of milliseconds;
3. The material range of weldable studs is wide, including: carbon steel, stainless steel, aluminum, etc..
4. For the motherboard is stainless steel, carbon steel, galvanized sheet, or aluminum sheet, it has a relatively good welding effect.
5. Using inverter technology, small size, light weight, energy saving, and environmental protection;
6. Integrated main filter to improve the EMC performance of the machine;
7. The arc is stable, the welding strength is high, and the weld metal is beautifully formed.
IKING Ssc Series Inverter Arc Stud Welder Applications
Widely used in automobile sheet metal, high-voltage complete sets,special vehicles, machinery manufacturing and other industries.
